| Model | Heavy Duty 1325 K3 |
| Working Size | X-1300* Y-2500* Z-300MM |
| Machine power | 6 kw |
| X,Y Transmission | Helical Rack and Pinion Gears for XY Axis |
| Z Transmission | 25mm TBI ball Screw |
| Working Table | T slot Aluminium table |
| Spindle | 3.5/4.5/6kw Air/Water cooled Spindle |
| Spindle Speed | 18000 RPM Air/Water24000 RPM |
| Guide Rail | 20mm LM Guide Rail (Taiwan) |
| Motor &Drive | Leadshine/Yakotech Servo motor & Drive |
| Controller | RichAuto A11 DSP/ NK105G2 |
| Inverter (VFD) | Best Brand Inverter |
| Oil Pump | Manual Lubricating System |
| Max Speed | 25-35m/min |
| Max. Working speed | 10-20m/min |
| Machine Accuracy | 0.025mm |
| Voltage | 220V/1PH/50Hz OR 3 Phase 380V 60/60HZ |
| Software | Art Cam , AutoCAD ,CorelDraw ,Aspire |
| Program | G Code ,MMG ,PLT,DXF, STL |
| Applicable Material | All Type of Wood ,MDF ,Acrylic ,ACP ,WPC ,PVC , Marbel ,Granite , stone , Glass , Aluminium , copper Etc
|
| Accessories | 20 Types Bits for Cutting & carving,3mm-12mm Collets
6pcs clamps, Spanner set,2D & 3D Designs Data |

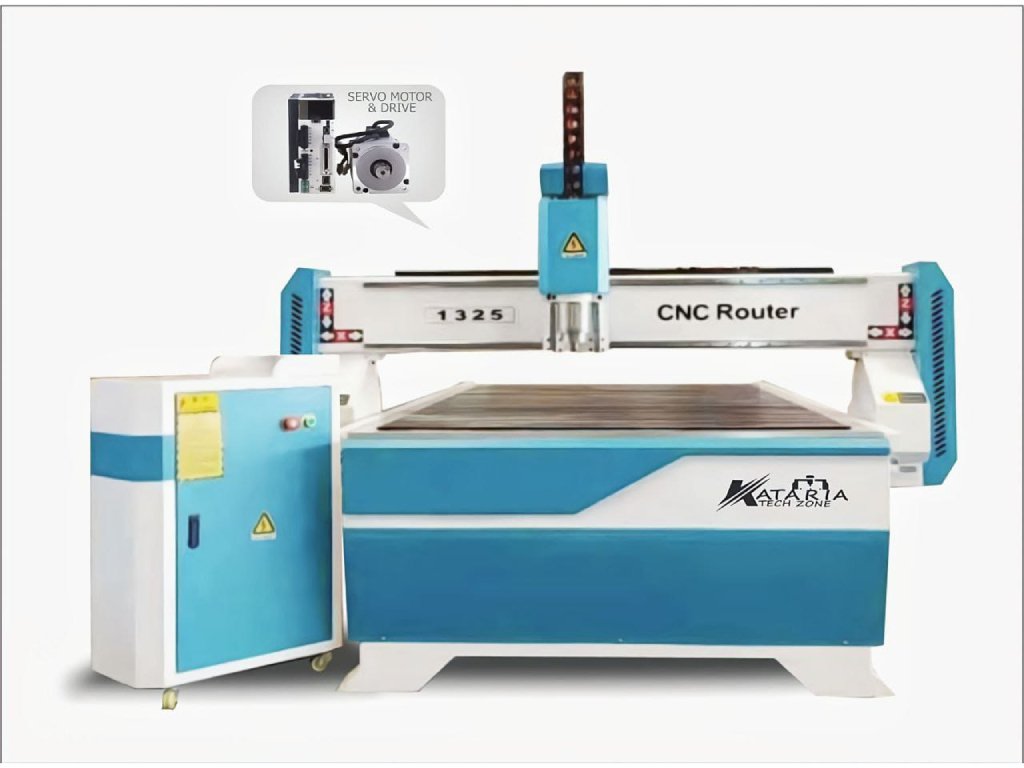

CNC Heavy Duty Wood Router (Model: 1325-K3)
Next product
CNC Router With Rotery Attachment
₹600,000.00
₹550,000.00
